CRL Low Profile Cap Angle Panel Connector

CRLSKU: P68FBN

Finish: Brushed Nickel
Price:
Sale price$55.98

Description

  • Ideal for Connecting Free Standing Screens or Panels
  • Available with Standard or Low Profile Caps

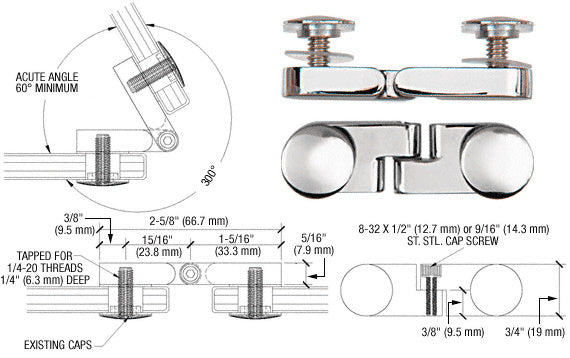

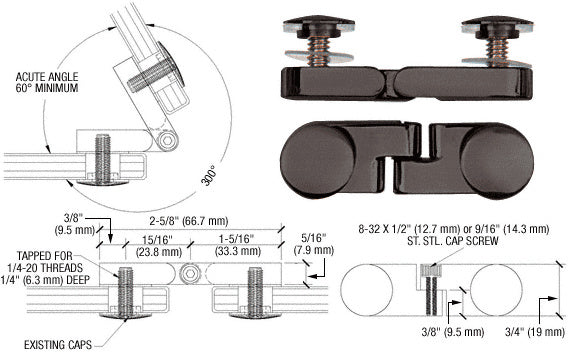

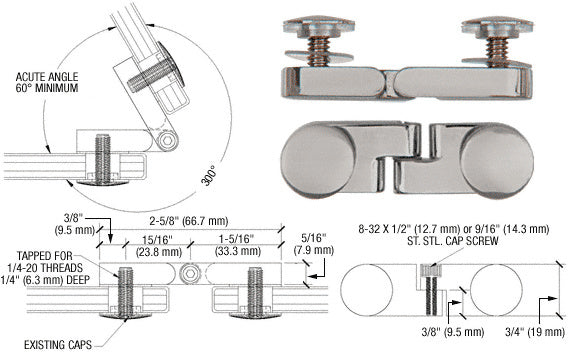

CRL Angle Panel Connectors are designed to connect free standing dressing screens, fireplace screens or decorative panels. CRL's Angle Panel Connectors will work with panel thicknesses from 3/16" to 3/4" (4.7 to 19 mm) and are fully adjustable in angles up to 300 degree. Available in several popular finishes and either standard or low profile cap designs. The Angle Panel Connectors require a drilled hole for installation. Supplied with two each 1/4"-20 x 3/4" and two each 1/4"-20 x 1-1/4" Allen Screws to accommodate varying panel thicknesses. Panel thicknesses less than 3/8" (10 mm) will require cutting the Allen Screw. The Standard Caps can easily be tightened using Cat. No. S0W Standoff Wrench. The Low Profile Caps are tightened by placing a low profile neoprene or rubber pad in the palm of your hand, applying pressure, and then turning.

Supplied with two each 1/4"-20 x 3/4" and two each 1/4"-20 x 1-1/4" Allen Screws to accommodate varying panel thicknesses. NOTE: Panel thicknesses less than 3/8" (10 mm) will require cutting the Allen Screw. The Standard Caps can easily be tightened using Cat. No. S0W Standoff Wrench. The Low Profile Caps are tightened by placing a flat neoprene or rubber pad in the palm of your hand, applying pressure, and then turning.

Specifications

Finish/Color Oil Rubbed Bronze, Brushed Nickel, Polished Chrome
Diameter 3/4 in. (19.1 mm)
Material Stainless Steel
