CRL Edge Grip for 3/8" Material

CRLSKU: EG38BR

Finish: Polished Brass
Price:
Sale price$31.98

Description

  • For 3/8" (10 mm) Material Thickness
  • No Drilling Required in Glass or Panel Materials
  • Can be Used on Corners and Edges of Panels
  • Supplied with a EGCS Socket Head Cap Screw

CRL's Edge Grips provide additional flexibility in attaching decorative panels or signage to walls or substrates. The Edge Grip allows material to be held to the wall without drilling holes in the face material. This allows for quick installation or adjustment of panels mounted in Edge Grips. 1-1/4" (32 mm) diameter Edge Grips are available in brass, chrome, satin chrome, 316 brushed stainless, and gun metal finishes, and are compatible with CRL standoffs. It is recommended that CRL Edge Grips be utilized at the top, bottom and sides of heavier panels for maximum support.

NOTE: To attach the Edge Grip directly to a substrate, use Cat. No. 12X112PHPSMS, a No. 12 by 1-1/2" Pan Head Phillips Sheet Metal Screw. It is recommended that screws be installed directly into wood blocking. Edge Grips are only recommended for installation of rectangular or square panels.

Product Warning:

We recommend CRL Edge Grips be used at the top, bottom, and sides of heavier panels for maximum support.

Specifications

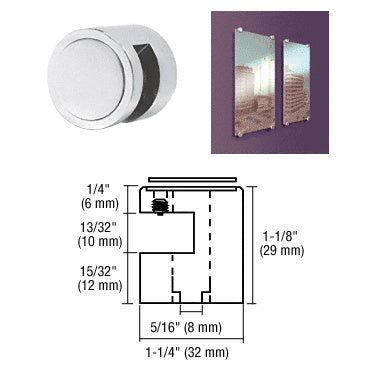

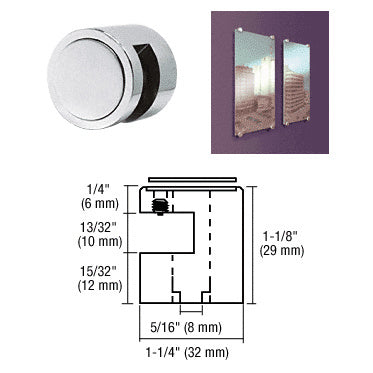

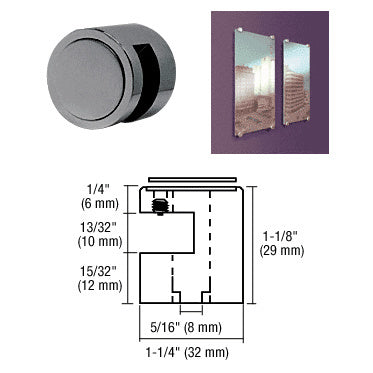

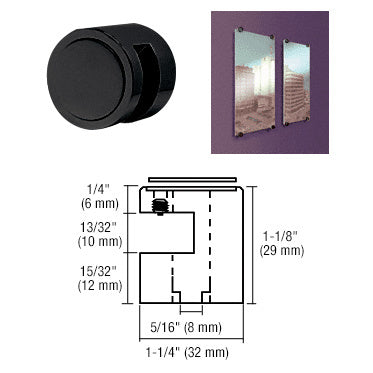

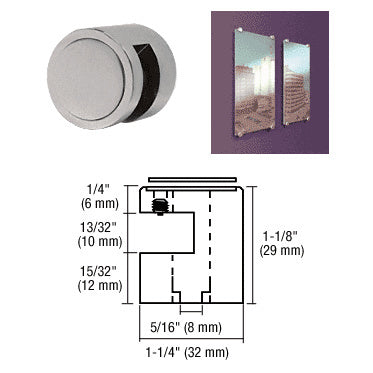

Diameter 1-1/4 in. (31.8 mm)
Glazing Thickness 3/8 in. (10 mm)
Height 1-1/8 in. (28.6 mm)
Material Brass
Finish/Color Polished Brass, Brushed Stainless Steel, Polished Chrome, Gun Metal, Matte Black, Satin Chrome
