Description
- For 1/4" to 5/16" (6 to 8 mm) Glass
- Two Per Package
- Two 1/2" (12 mm) Holes Required

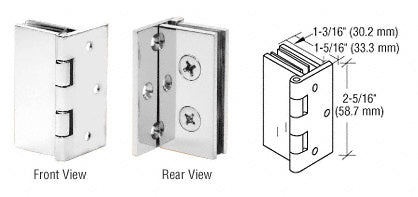

For wall mounted tempered glass applications. CRL Brass Double Wall-to-Glass Hinges are made of forged brass construction with a screw attachment feature. Clear vinyl pad inserts protect glass. Available in polished brass with lacquered finish or chrome plated. Requires 1/2" (12 mm) holes in glass for mounting.
The maximum recommended door width is 22" (559 mm) and maximum weight should not exceed 30 lbs. (13.6 kg).
Specifications
| Finish/Color | Polished Chrome, Polished Brass, Brushed Nickel |
| Glazing Thickness | 1/4 in. To 5/16 in. (6mm To 8 mm) |
| Height | 2-5/16 in. (58.7 mm) |
| Material | Brass |
| Maximum Door Width | 22 in. (558.8 mm) |
| Pack Quantity | 2 |
| Weight Capacity | 30 lbs. (13.6 kg) |
| Width | 1-5/16 in. (33.3 mm) |
Downloadable Documents
