Description
- Made from Highest Quality No. 6063 Alloy
- Available in Several Attractive Finishes

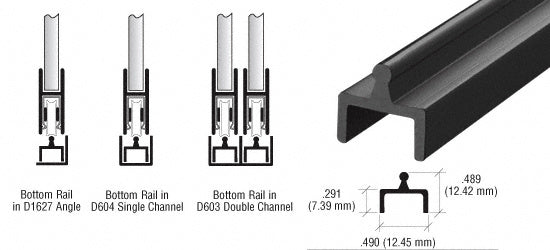

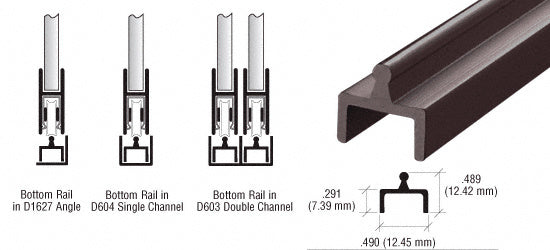

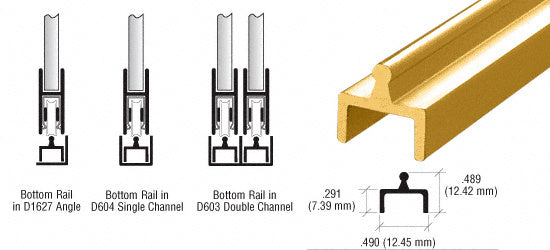

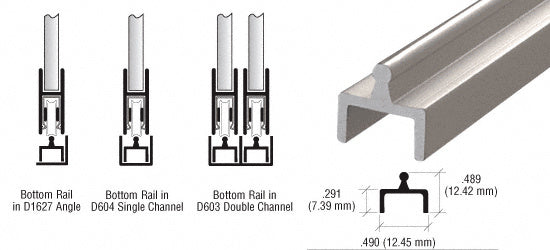

This CRL Single Bottom Rail is used with Lower Channels to act as a rail for sliding panels. Removes from channel for easy cleaning.
CRL Aluminum Extrusions and Accessories allow you to customize track assemblies to your individual needs. Made from the highest quality, No. 6063 alloy - T-5 aluminum, our extrusions are uniformly anodized. Anodizing is the process of electronically adding a thicker coat of oxidizing to aluminum, which protects the metal from scratches, blemishes and atmosphere. The standard finish is commercial satin anodized, but it is also available in commercial 145 gold, duranodic 312 bronze, black, brite and brite gold finishes. Commonly used with our D603 series channel.
SPECIFICATIONS:
Material: 6063-T5 Aluminum Alloy
Thickness: .059 (1.50 mm)
Stock Length: 12' (3.66 m)
Typical Uses: Acts as a Rail for Sliding Panels.
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Specifications
| Height | 0.489 in. (12.4 mm) |
| Length | 144 in. (3657.6 mm) |
| Material | Aluminum |
| Thickness | 0.059 in. (1.5 mm) |
| Width | 0.49 in. (12.4 mm) |
| Finish/Color | Satin Anodized, Brite Anodized, Brite Gold Anodized, Flat Black, Brushed Nickel, Dark Bronze Anodized, Gold Anodized |
