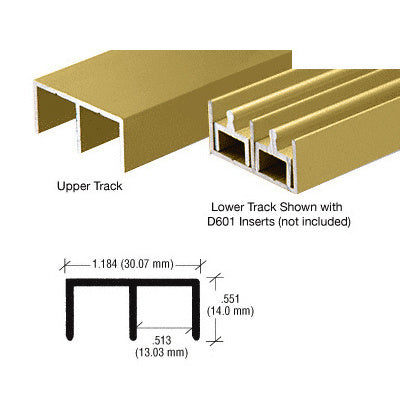

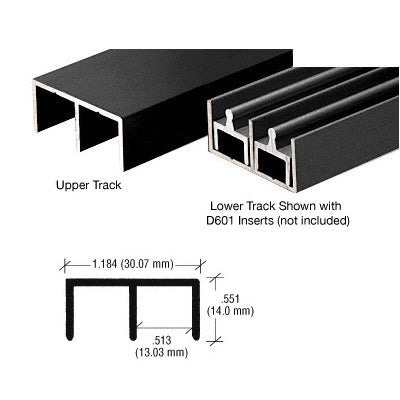

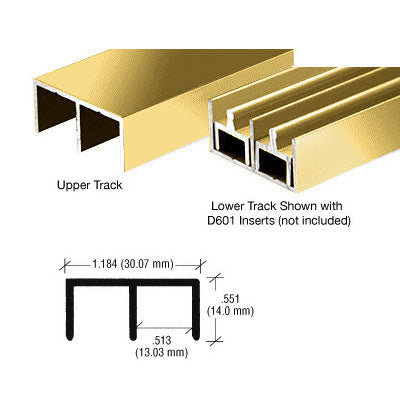

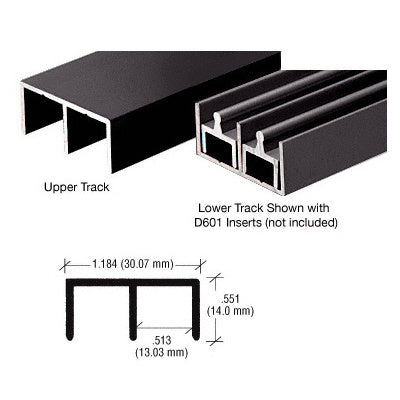

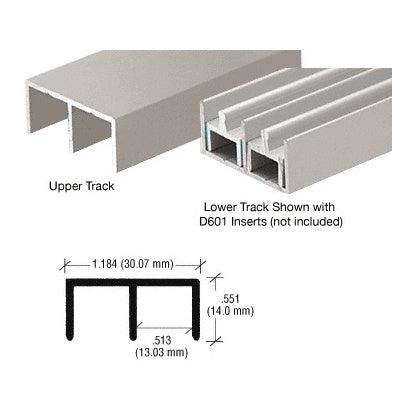

CRL "Standard" Aluminum Upper or Lower Channel

CRLSKU: D603A

Finish: Satin Anodized
Price:
Sale price$49.98

Description

  • Used as Side Jamb, Top or Bottom Channel
  • Made from Highest Quality No. 6063 Alloy
  • Available in Several Finishes

The CRL Upper or Lower Channel for Track Assemblies are among the most popular channels we sell, they are available in several finishes. Universal double track. Interchangeable with most sliding tracks on the market. May be used as a slide jamb, top or bottom channel. One of the most popular channels we sell, it maybe surface or recessed mounted.

CRL Aluminum Extrusions and Accessories allow you to customize track assemblies to your individual needs. Made from the highest quality, No. 6063 alloy T-5 aluminum, our extrusions are uniformly anodized. Anodizing is the process of electronically adding a thicker coat of oxidizing to aluminum, which protects the metal from scratches, blemishes and atmosphere.

SPECIFICATIONS:
Material: 6063-T5 Aluminum Alloy
Thickness: .053 (1.35 mm)
Stock Length: 12' (3.66 m)
Typical Uses: Bottom Channel or Side Jamb.

Product Warning:

Stock lengths must ship common carrier unless specifically cut for UPS shipment.

Specifications

Height 0.551 in. (14 mm)
Length 144 in. (3657.6 mm)
Material Aluminum
Open Width 0.513 in. (13 mm)
Thickness 0.053 in. (1.3 mm)
Width 1.184 in. (30.1 mm)
Finish/Color Satin Anodized, Brite Anodized, Brite Gold Anodized, Flat Black, Brushed Nickel, Dark Bronze Anodized, Gold Anodized
