CRL 3/4" Square Standoff Base Custom Length (Discontinued)

• Infinite Design Options Including Signage, Furniture and Retail Display
• Accomplish Your Design Objective by Ordering Custom Lengths to Your Specifications
• Uniquely Styled

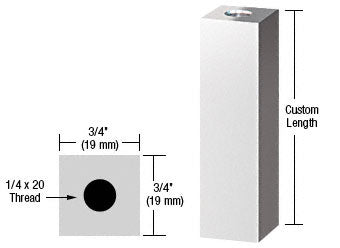

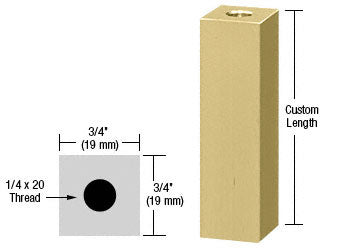

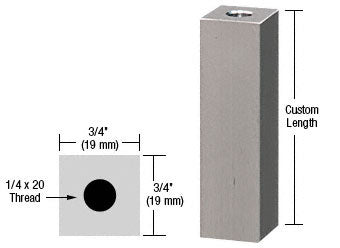

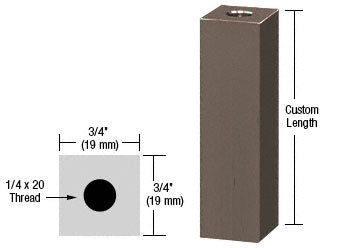

This CRL Square Custom Standoff Base matches your Square Custom Cap, and is now available from the Manufacturing Division of CRL. As a result of customer requests for special lengths and finishes of Standoff Products, CRL provides custom fabrication of 1/2" (12 mm) round, 3/4" (19 mm) square and round, 1" (25 mm) round, 1-1/4" (32 mm) square and round, 1-3/4" (44 mm) and 2" (51 mm) round standoff base and cap assemblies.

The overall length of the base is 2" (51 mm) or less, the base will be drilled and tapped all the way through. If over 2" (51 mm), the base will be drilled and tapped at a depth of 1" (25.4 mm) on each end.

The thread sizes for Custom Caps and Bases are:

For less than 3/4" (19 mm) diameter, drill and tap for 10-24 screw thread.

For 3/4" (19 mm) to less than 1-1/4" (32 mm) diameter or square, drill and tap for 1/4-20 screw thread.

For 1-1/4" (32 mm) to less than 1-1/2" (38 mm) diameter or square, drill and tap for 5/16-18 screw thread.

For 1-1/2" (38 mm) diameter or greater, drill and tap for 3/8-16 screw thread.

CRL Standoff Systems offer a complete range of mounting accessories that you can order in any quantity necessary for your project. For installation techniques or design assistance using CRL Standoffs, contact the CRL Technical Sales Department.

Product Warning:

Due to the diversified variety of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring.
