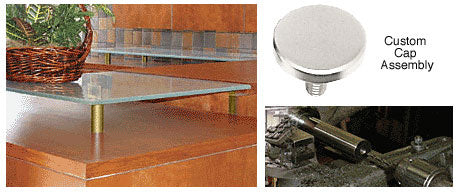

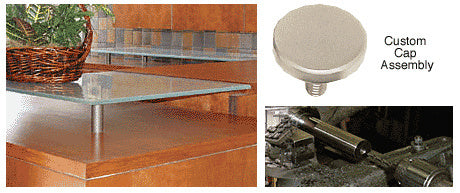

CRL 316 3" Diameter Custom Standoff Cap Assembly

• Manufactured to Your Specifications
• Made From 316 Stainless Steel and Available in Two Finishes

This CRL Custom Cap Assembly is made to match your Custom Standoff Base, and is now available from the Manufacturing Division of CRL. As a result of customer requests for special lengths and finishes of Standoff Products, CRL provides custom fabrication of several diameter standoff base and cap assemblies.

Available Finishes: Polished Stainless, Brushed Stainless, Satin Chrome, Polished Brass, Brushed Brass and Standard Powder Coated Colors.

The thread sizes for Custom Caps and Bases are:

For less than 3/4" (19 mm) diameter, drill and tap for 10-24 screw thread.

For 3/4" (19 mm) to less than 1-1/4" (32 mm) diameter, drill and tap for 1/4"-20 screw thread.

For 1-1/4" (32 mm) to less than 1-1/2" (38 mm) diameter, drill and tap for 5/16"-18 screw thread.

For 1-1/2" (38 mm) diameter or greater, drill and tap for 3/8"-16 screw thread.

Custom Cap Thickness, unless noted otherwise, will be as follows:

For 1/4-20 and 5/16-18 threaded rods, the Cap will be 1/4" (6 mm) thick.

For 3/8-16 threaded rods, the cap will be 3/8" (10 mm).

All Threaded Rods included with Custom Caps will be 1-1/4" (32 mm) in length, unless noted otherwise. All Caps include two matching diameter washers and one grommet.

CRL Standoff Systems offer a complete range of mounting accessories that you can order in any quantity necessary for your project. For more information contact our Technical Sales Department.
